The history behind power tools
Fun Fact: The "Great-Grandfather" of Power Tools Was a Behemoth
Modern power tools are small and highly efficient, but their ancestors were far from it.

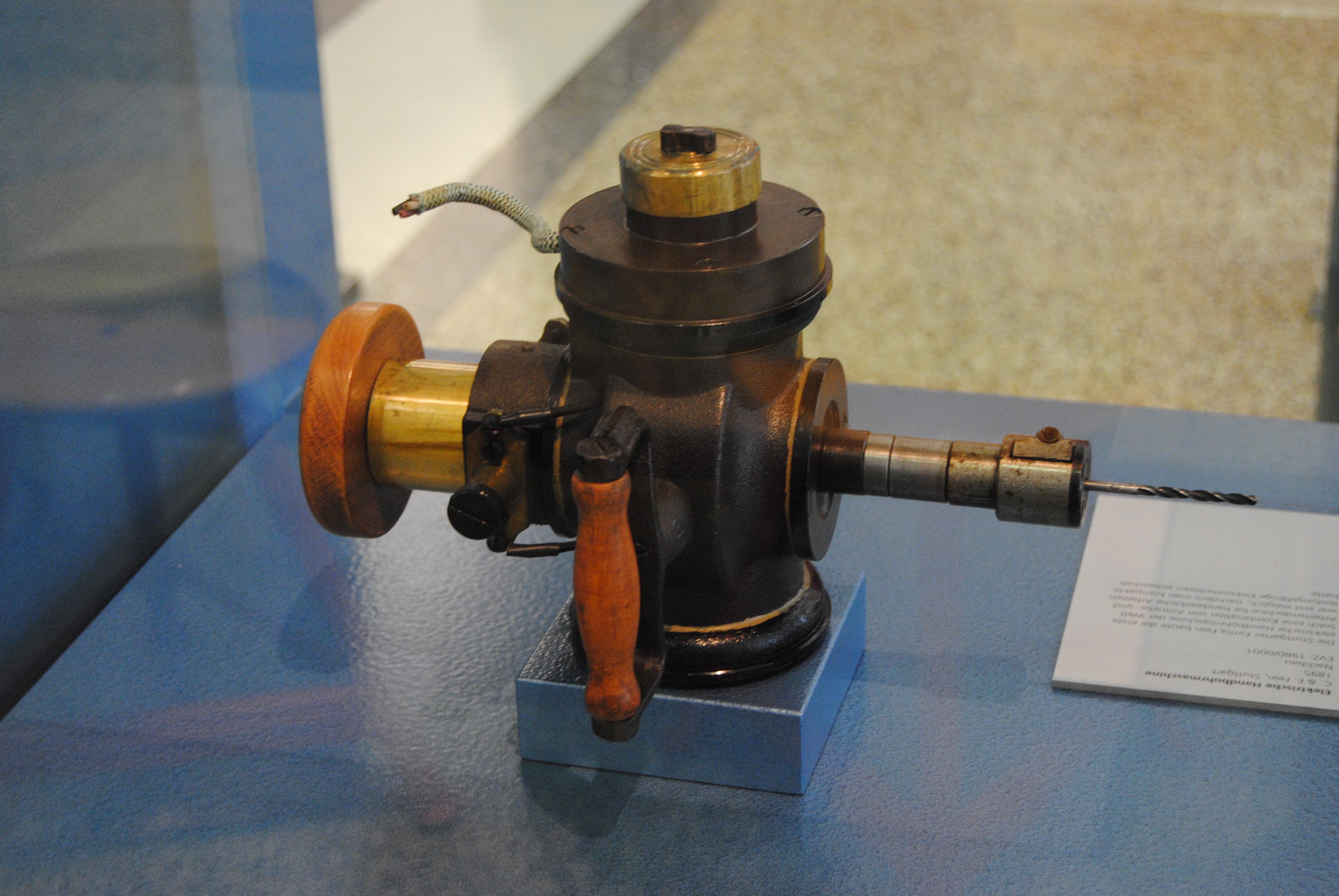

Inventor: Although Australian engineer Arthur James Arnot filed an early patent in 1889, the first commercially successful portable electric drill was thanks to the German company FEIN in 1895.
The First Electric Drill: Its purpose wasn't for home DIY projects, but for heavy industry—mining and rock drilling. Early tools were connected to a large central motor via a bulky overhead shaft and belt system. They were more like small industrial machines than handheld tools.
Working principle: The principle is very simple: the electric motor generates rotational force, which is then transmitted through a series of gears to adjust the speed and torque, ultimately driving the drill chuck. Its core concept is—and still is—converting electrical energy into mechanical energy through electromagnetic interaction.

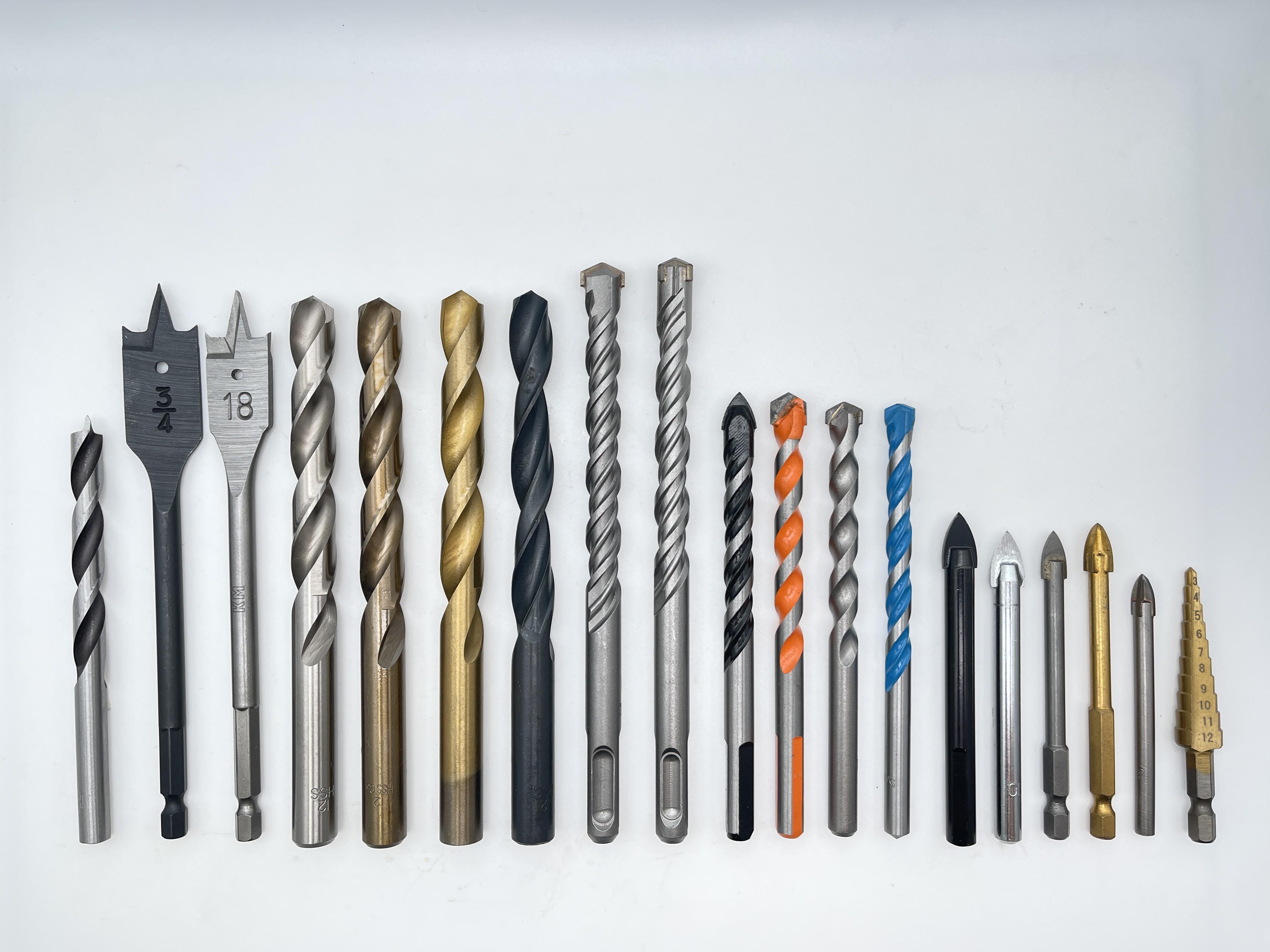

Choosing the Right Drill Bit
Softwood (Pine, Cedar, etc.): A standard twist drill will suffice.
Hardwood (Oak, Walnut, etc.): High-speed steel drill bits are recommended to maintain sharpness and achieve a smooth cutting effect.
Laminated Boards or Composite Materials: Specialized woodworking drill bits should be used to minimize chipping.
Drilling Metals: Harder metals require higher quality, sharper drill bits.
Ordinary Steel: High-speed steel (HSS) drill bits are economical.
Stainless Steel: Cobalt-containing high-speed steel drill bits (M35 or M42) are required for better heat resistance.
Soft Metals, such as Aluminum Alloys: Standard high-speed steel drill bits can be used, but the rotation speed needs to be controlled.
Drilling Masonry: Hard materials such as concrete, brick, and stone require specially designed drill bits.
Concrete: Tungsten carbide drill bits are the standard choice.
Tile: Specialized tile drill bits are required, usually with a diamond coating; drilling speed should be reduced and the material cooled. Glass or ceramic: Diamond-coated drill bits must be used; continuous water cooling is required during drilling.

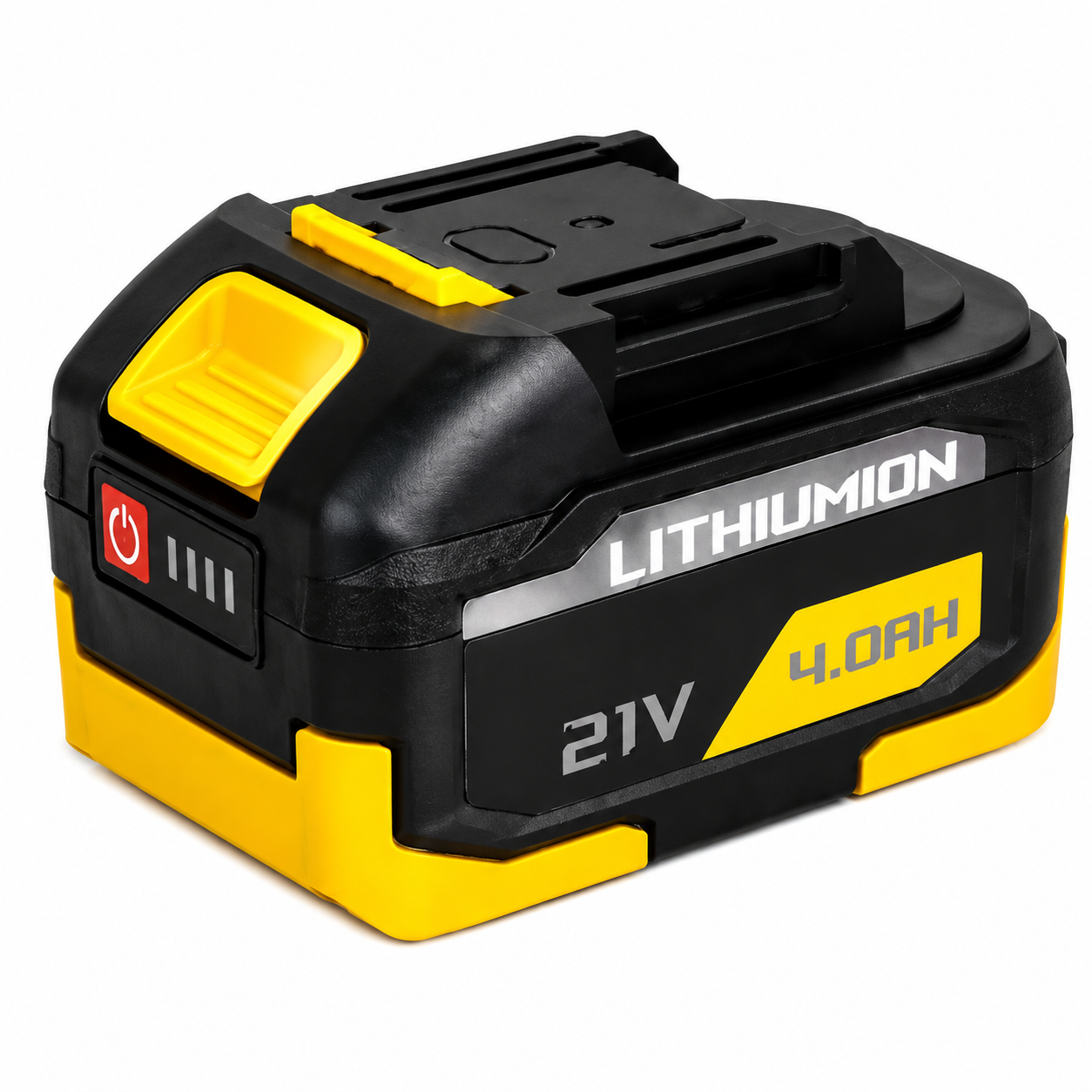

Advantages of lithium batteries：
High Energy Density: Lithium-ion batteries store more energy in the same volume and weight, providing longer battery life.
Lightweight and Portable: Compared to traditional nickel-cadmium and lead-acid batteries, lithium-ion batteries are lighter and easier to carry, making them ideal for cordless power tools, mobile devices, and other products.
Long Lifespan: Long charge-discharge cycle life, resulting in longer service life under normal use and lower replacement costs.
Fast Charging: Supports fast charging, reducing waiting time and improving work efficiency.
Low Self-Discharge Rate: Maintains a considerable amount of charge even after prolonged storage, ensuring it's always ready to use.
No Memory Effect: Can be charged without being fully discharged; can be charged as needed.
Stable Output Power: Capable of continuously providing high current, suitable for high-power equipment such as drills, impact drills, and power wrenches.
Good Environmental Performance: Free of harmful heavy metals such as cadmium and mercury, making it more environmentally friendly than traditional batteries.
How do brushless motors work?
Brushless motors completely eliminate carbon brushes and commutators, thus avoiding physical contact.
Role reversal: In a brushless motor, the rotor is a permanent magnet, while the stator contains electromagnetic coils.
Electronic commutation: A precision microcontroller inside the motor continuously monitors the rotor's position and precisely controls the direction and timing of the current delivered to the stator coils. This generates a rotating magnetic field that drives the permanent magnet rotor to rotate—without direct contact.
Key advantages of brushless motors:
More powerful and longer runtime: Efficiency is significantly improved due to the elimination of energy losses caused by friction and sparks. This means the same battery can provide greater power and longer runtime.
Longer lifespan: The absence of fragile brushes greatly extends the motor's lifespan, which is primarily limited by the bearings.
Quieter and easier to operate: Less physical contact noise is generated during operation. The electronic control system precisely controls speed and torque.
More reliable: Safer for use in flammable, dusty, or smoky environments because there are no sparks.
